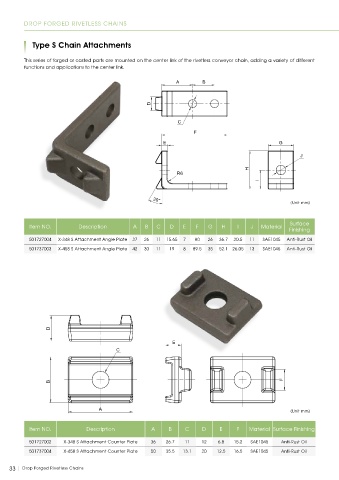

DROP FORGED RIVETLESS CHAINS
Type S Chain Attachments
This series of forged or casted parts are mounted on the center link of the rivetless conveyor chain, adding a variety of different
functions and applications to the center link.
A B
D
C
F
E G
J
H
R6
I
30°
(Unit mm)
Surface
Item NO. Description A B C D E F G H I J Material
Finishing
501727004 X-348 S Attachment Angle Plate 37 26 11 15.65 7 80 26 36.7 20.5 11 SAE1045 Anti-Rust Oil
501737003 X-458 S Attachment Angle Plate 42 30 11 19 8 89.5 35 52.1 26.05 13 SAE1045 Anti-Rust Oil
D
E
C
F
B
A (Unit mm)
Item NO. Description A B C D E F Material Surface Finishing
501727002 X-348 S Attachment Counter Plate 36 26.7 11 12 6.8 15.2 SAE1045 Anti-Rust Oil
501737004 X-458 S Attachment Counter Plate 50 35.5 13.1 20 12.5 16.5 SAE1045 Anti-Rust Oil
