Page 30 - 2020 Product catalog
P. 30

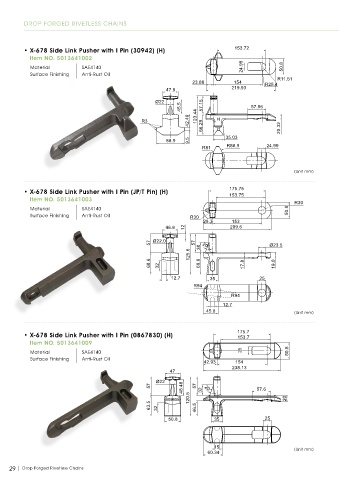

DROP FORGED RIVETLESS CHAINS
• X-678 Side Link Pusher with I Pin (30942) (H) 153.72
Item NO. 5013641002
Material SAE4140 24.99 50.8
Surface Finishing Anti-Rust Oil
R11.51
23.88 154 R25.4
47.8 219.93
Ø22
45.5 57.15 57.56
R3 42.49 123.44 66.29 H 20.32
35.03
88.9 9.5
R81 R88.9 24.99
(Unit mm)
• X-678 Side Link Pusher with I Pin (JP/T Pin) (H) 175.75
153.75
Item NO. 5013641003
R30
Material SAE4140 50.8
Surface Finishing Anti-Rust Oil R30
28.3 153
46.8 12 209.6
57 Ø22.0 57 Ø23.5
30 20°
125.6
68.6 32 68.6 17.8 19.0
12.7 35 25
R94
R94
12.7
45.8 (Unit mm)
175.7
• X-678 Side Link Pusher with I Pin (0867830) (H) 153.7
Item NO. 5013641009
Material SAE4140 25 50.8
Surface Finishing Anti-Rust Oil
42.93 154
238.13
47
Ø22
57 48.48 57 32 20° 57.6
120.5 20
63.5 32 46.5
50.8 35 25
15
60.34 (Unit mm)
29 Drop Forged Rivetless Chains
