Page 35 - 2020 Product catalog

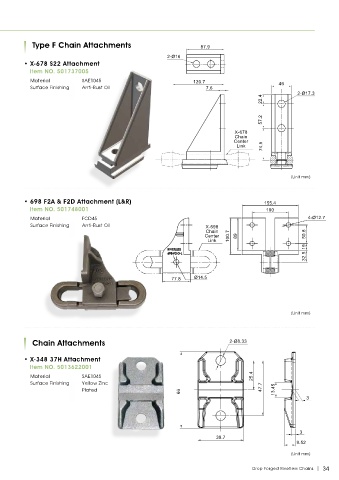

Type F Chain Attachments 87.9

2-Ø16
• X-678 S22 Attachment
Item NO. 501737005
Material SAE1045 120.7 46
Surface Finishing Anti-Rust Oil 7.6
2-Ø17.3
22.4

57.2

X-678
Chain
Center
Link 74.5

(Unit mm)

• 698 F2A & F2D Attachment (L&R) 155.4
Item NO. 501748001 100
Material FCD45 4-Ø12.7
Surface Finishing Anti-Rust Oil X-698
Chain
Center 100.7 89 50.8
Link
19
32.5

77.8 Ø14.5

(Unit mm)

Chain Attachments 2-Ø8.33

• X-348 37H Attachment
Item NO. 5013622001
Material SAE1045 25.4
Surface Finishing Yellow Zinc
Plated 66 47.7 13.45
3

3
39.7
9.52

(Unit mm)

Drop Forged Rivetless Chains 34
