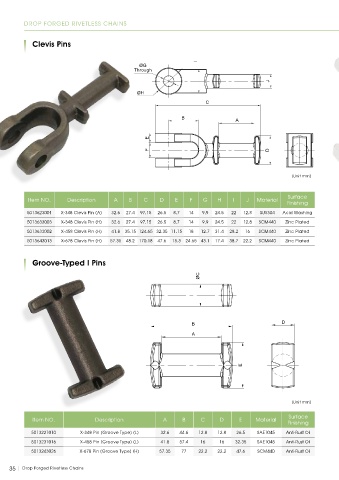

Page 36 - 2020 Product catalog

DROP FORGED RIVETLESS CHAINS

Clevis Pins

I
ØG
Through

J
ØH
C

B A

E
F D

(Unit mm)

Surface
Item NO. Description A B C D E F G H I J Material
Finishing
5013623001 X-348 Clevis Pin (A) 32.6 27.4 97.15 26.5 8.7 14 9.9 24.5 22 12.8 SUS304 Acid Washing
5013633003 X-348 Clevis Pin (H) 32.6 27.4 97.15 26.5 8.7 14 9.9 24.5 22 12.8 SCM440 Zinc Plated
5013633002 X-458 Clevis Pin (H) 41.8 35.15 124.65 32.35 11.15 18 12.7 31.4 28.2 16 SCM440 Zinc Plated
5013643013 X-678 Clevis Pin (H) 57.35 48.2 170.18 47.6 15.3 24.65 43.1 17.4 38.7 22.2 SCM440 Zinc Plated

Groove-Typed I Pins

ØC

B D
A

E

(Unit mm)

Surface
Item NO. Description A B C D E Material
Finishing
5013221010 X-348 Pin (Groove Type) (L) 32.6 44.6 12.8 12.8 26.5 SAE1045 Anti-Rust Oil
5013231016 X-458 Pin (Groove Type) (L) 41.8 57.4 16 16 32.35 SAE1045 Anti-Rust Oil
5013243026 X-678 Pin (Groove Type) (H) 57.35 77 22.2 22.2 47.6 SCM440 Anti-Rust Oil
