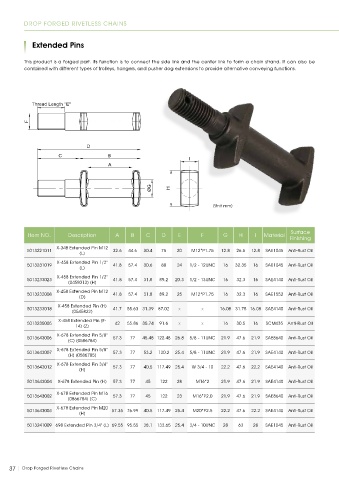

Page 38 - 2020 Product catalog
P. 38
DROP FORGED RIVETLESS CHAINS
Extended Pins
This product is a forged part. Its function is to connect the side link and the center link to form a chain strand. It can also be
combined with different types of trolleys, hangers, and pusher dog extensions to provide alternative conveying functions.
Thread Length "E"
F
D
C B
I
A
ØG H
(Unit mm)
Surface
Item NO. Description A B C D E F G H I Material
Finishing
X-348 Extended Pin M12
5013221011 32.6 44.6 30.4 75 20 M12*P1.75 12.8 26.5 12.8 SAE1045 Anti-Rust Oil
(L)
X-458 Extended Pin 1/2"
5013231019 41.8 57.4 30.6 88 24 1/2 - 12UNC 16 32.35 16 SAE1045 Anti-Rust Oil
(L)
X-458 Extended Pin 1/2"
5013233023 41.8 57.4 31.8 89.2 20.3 1/2 - 13UNC 16 32.3 16 SAE4140 Anti-Rust Oil
(0458013) (H)
X-458 Extended Pin M12
5013232008 41.8 57.4 31.8 89.2 25 M12*P1.75 16 32.3 16 SAE1552 Anti-Rust Oil
(D)
X-458 Extended Pin (H)
5013233018 41.7 55.63 31.39 87.02 x x 16.08 31.75 16.08 SAE4140 Anti-Rust Oil
(0545822)
X-458 Extended Pin (F-
5013235005 42 55.86 35.74 91.6 x x 16 30.5 16 SCM435 Anti-Rust Oil
14) (Z)
X-678 Extended Pin 5/8"
5013643006 57.3 77 45.48 122.48 26.8 5/8 - 11UNC 21.9 47.6 21.9 SAE8640 Anti-Rust Oil
(C) (0586784)
X-678 Extended Pin 5/8"
5013643007 57.3 77 53.2 130.2 25.4 5/8 - 11UNC 21.9 47.6 21.9 SAE4140 Anti-Rust Oil
(H) (0586785)
X-678 Extended Pin 3/4"
5013643012 57.3 77 40.5 117.49 25.4 W 3/4 - 10 22.2 47.6 22.2 SAE4140 Anti-Rust Oil
(H)
5013643004 X-678 Extended Pin (H) 57.3 77 45 122 28 M16*2 21.9 47.6 21.9 SAE4140 Anti-Rust Oil
X-678 Extended Pin M16
5013643002 57.3 77 45 122 23 M16*P2.0 21.9 47.6 21.9 SAE8640 Anti-Rust Oil
(0866784) (C)
X-678 Extended Pin M20
5013643003 57.35 76.99 40.5 117.49 25.4 M20*P2.5 22.2 47.6 22.2 SAE4140 Anti-Rust Oil
(H)
5013241009 698 Extended Pin 3/4" (L) 69.55 95.55 38.1 133.65 25.4 3/4 - 10UNC 28 63 28 SAE1045 Anti-Rust Oil
