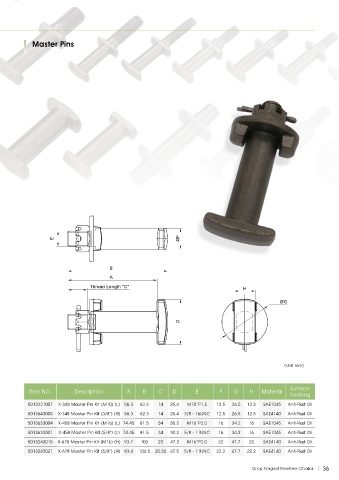

Master Pins
ØF
E
B
A
Thread Length "C" H
ØG
D
(Unit mm)
Surface
Item NO. Description A B C D E F G H Material
Finishing
5013221007 X-348 Master Pin Kit (M10) (L) 56.3 62.3 14 25.4 M10*P1.5 12.5 26.5 12.5 SAE1045 Anti-Rust Oil
5013643005 X-348 Master Pin Kit (3/8") (H) 56.3 62.3 14 25.4 3/8 - 16UNC 12.5 26.5 12.5 SAE4140 Anti-Rust Oil
5013633004 X-458 Master Pin Kit (M16) (L) 74.45 81.5 34 30.2 M16*P2.0 16 34.2 16 SAE1045 Anti-Rust Oil
5013633001 X-458 Master Pin Kit (5/8") (L) 74.45 81.5 34 30.2 5/8 - 11UNC 16 34.2 16 SAE1045 Anti-Rust Oil
5013243015 X-678 Master Pin Kit (M16) (H) 93.7 103 23 47.3 M16*P2.0 22 47.7 22 SAE4140 Anti-Rust Oil
5013243021 X-678 Master Pin Kit (5/8") (H) 93.4 104.5 20.55 47.5 5/8 - 11UNC 22.2 47.7 22.2 SAE4140 Anti-Rust Oil
