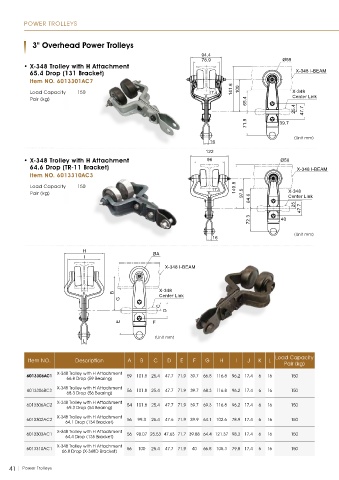

Page 42 - 2020 Product catalog

POWER TROLLEYS

3" Overhead Power Trolleys
94.4
78.9 Ø59
• X-348 Trolley with H Attachment
65.4 Drop (131 Bracket) X-348 I-BEAM
Item NO. 6013301AC7

Load Capacity 150 17.4 141.6 100 X-348
Pair (kg) 6 65.4 Center Link
25.4 47.7

71.9 39.7

(Unit mm)
16
122
• X-348 Trolley with H Attachment 96 Ø56
64.6 Drop (TR-11 Bracket) X-348 I-BEAM
Item NO. 6013310AC3
Load Capacity 150 17.4 140.8
Pair (kg) 6 97.5 X-348
Center Link
64.6
25
47.7
72.3 40

(Unit mm)
16
H ØA
I
X-348 I-BEAM

J X-348
K B Center Link
G
C
D
E F

(Unit mm)
L

Load Capacity
Item NO. Description A B C D E F G H I J K L
Pair (kg)
X-348 Trolley with H Attachment
6013306AC1 59 101.8 25.4 47.7 71.9 39.7 66.8 116.8 96.2 17.4 6 16 150
66.8 Drop (59 Bearing)
X-348 Trolley with H Attachment
6013306BC3 56 101.8 25.4 47.7 71.9 39.7 68.3 116.8 96.2 17.4 6 16 150
68.3 Drop (56 Bearing)
X-348 Trolley with H Attachment
6013306AC2 54 101.8 25.4 47.7 71.9 39.7 69.3 116.8 96.2 17.4 6 16 150
69.3 Drop (54 Bearing)
X-348 Trolley with H Attachment
6013302AC2 56 99.3 25.4 47.6 71.9 39.9 64.1 102.6 78.9 17.4 6 16 150
64.1 Drop (134 Bracket)
X-348 Trolley with H Attachment
6013303AC1 56 98.07 25.53 47.63 71.7 39.88 64.4 121.37 98.2 17.4 6 16 150
64.4 Drop (135 Bracket)
X-348 Trolley with H Attachment
6013310AC1 56 100 25.4 47.7 71.9 40 66.8 105.3 79.8 17.4 6 16 150
66.8 Drop (X-348D Bracket)

41 Power Trolleys
