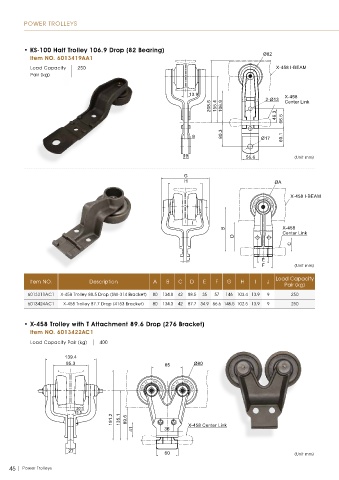

Page 46 - 2020 Product catalog

POWER TROLLEYS

• KS-100 Half Trolley 106.9 Drop (82 Bearing) Ø82
Item NO. 6013419AA1
Load Capacity 250 X-458 I-BEAM
Pair (kg)

13.9 X-458
2-Ø13 Center Link
208.5 155.4 106.9
46.3 66.5

9 80.3 Ø17 60.1

19 56.6 (Unit mm)

G
H ØA

X-458 I-BEAM
0 2 5 - 25 YUH - CHE RN
8

I
B X-458
Center Link
D
C

J E
F (Unit mm)
Load Capacity
Item NO. Description A B C D E F G H I J
Pair (kg)
6013311AC1 X-458 Trolley 88.5 Drop (SW-314 Bracket) 80 134.8 42 88.5 35 57 146 103.4 13.9 9 250
6013424AC1 X-458 Trolley 87.7 Drop (4153 Bracket) 80 134.3 42 87.7 34.9 56.6 148.5 102.5 13.9 9 250

• X-458 Trolley with T Attachment 89.6 Drop (276 Bracket)
Item NO. 6013422AC1
Load Capacity Pair (kg) 400

139.4
95.3 85 Ø80

8 0 2 5 - 25 YUH - CHE RN 0 2 5 - 25 YUH - CHE RN

8

20.4
15.5
191.2 135.1 89.6

41 36 X-458 Center Link

27 60 (Unit mm)

45 Power Trolleys
