POWER TROLLEYS

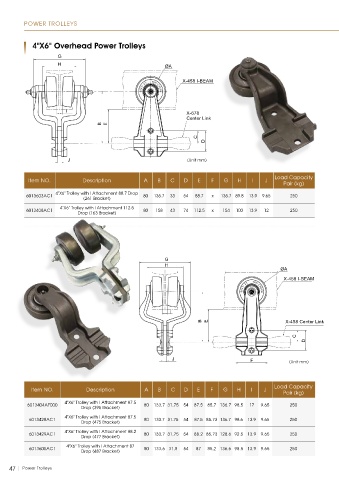

4"X6" Overhead Power Trolleys

G
H ØA

X-458 I-BEAM
0 2 5 - 25 YUH -
8 CHE RN

I X-678
Center Link
B E

C
D

J (Unit mm)

Load Capacity
Item NO. Description A B C D E F G H I J
Pair (kg)
4"X6" Trolley with I Attachment 88.7 Drop
6013603AC1 80 135.7 33 54 88.7 x 135.7 89.8 13.9 9.65 250
(261 Bracket)
4"X6" Trolley with I Attachment 112.5
6013408AC1 80 158 43 74 112.5 x 154 100 13.9 12 250
Drop (163 Bracket)

G
H
ØA
X-458 I-BEAM
0 2 5 - 25 YUH -
8 CHE RN

I
B E X-458 Center Link

C
D

J F (Unit mm)

Load Capacity
Item NO. Description A B C D E F G H I J
Pair (kg)
4"X6" Trolley with I Attachment 87.5
6013404AF000 80 133.7 31.75 54 87.5 85.7 136.7 98.5 17 9.65 250
Drop (395 Bracket)
4"X6" Trolley with I Attachment 87.5
6013428AC1 80 133.7 31.75 54 87.5 85.73 136.7 98.6 13.9 9.65 250
Drop (475 Bracket)
4"X6" Trolley with I Attachment 88.2
6013429AC1 80 133.7 31.75 54 88.2 85.73 128.6 92.5 13.9 9.65 250
Drop (477 Bracket)
4"X6" Trolley with I Attachment 87
6013605AC1 80 133.6 31.8 54 87 85.2 136.6 98.5 13.9 9.65 250
Drop (487 Bracket)

47 Power Trolleys
