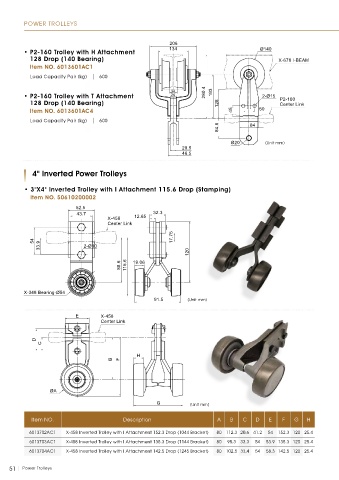

POWER TROLLEYS

206
134 Ø140
• P2-160 Trolley with H Attachment
128 Drop (140 Bearing) X-678 I-BEAM
Item NO. 6013601AC1
Load Capacity Pair (kg) 600

34 280.4 193
• P2-160 Trolley with T Attachment 26 2-Ø15 P2-160
128 Drop (140 Bearing) 128 Center Link
Item NO. 6013601AC4 45 50
Load Capacity Pair (kg) 600
84.6 84

Ø20 (Unit mm)
29.5
46.5

4" Inverted Power Trolleys

• 3"X4" Inverted Trolley with I Attachment 115.6 Drop (Stamping)
Item NO. 50610200002

52.5
43.7 32.3
X-458 12.65
Center Link

17.75
54
33.9 2-Ø10
120

88.6 115.6 19.06

X-348 Bearing-Ø54
91.5 (Unit mm)

E X-458
Center Link

D
C
H
B F

ØA

G (Unit mm)

Item NO. Description A B C D E F G H

6013702AC1 X-458 Inverted Trolley with I Attachment 152.3 Drop (1044 Bracket) 80 112.3 20.6 41.2 54 152.3 120 25.4
6013703AC1 X-458 Inverted Trolley with I Attachment 135.3 Drop (1144 Bracket) 80 95.3 33.3 54 53.9 135.3 120 25.4
6013704AC1 X-458 Inverted Trolley with I Attachment 142.5 Drop (1245 Bracket) 80 102.5 33.4 54 58.3 142.5 120 25.4
