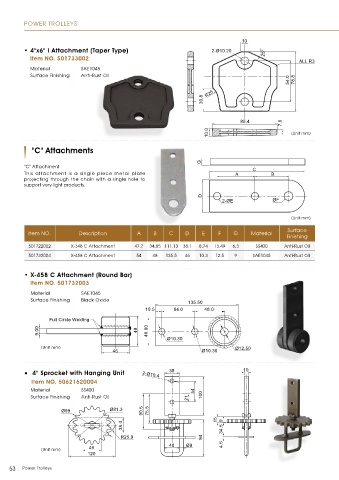

Page 54 - 2020 Product catalog

POWER TROLLEYS

10
• 4"x6" I Attachment (Taper Type) 2-Ø10.20 25°
Item NO. 501733002 ALL R3
Material SAE1045
Surface Finishing Anti-Rust Oil
54.0 78.8

R20
30.8

85.4 7.0
10.0 (Unit mm)

"C" Attachments

G
"C" Attachment C
This attachment is a single piece metal plate A B
projecting through the chain with a single hole to
support very light products.

D
2-ØE ØF

(Unit mm)

Surface
Item NO. Description A B C D E F G Material
Finishing
501722002 X-348 C Attachment 47.7 34.85 111.13 38.1 8.74 13.49 6.3 SS400 Anti-Rust Oil
501732004 X-458 C Attachment 54 48 135.5 46 10.3 12.5 9 SAE1045 Anti-Rust Oil

• X-458 C Attachment (Round Bar)
Item NO. 501732003

Material SAE1045
Surface Finishing Black Oxide 135.50
10.5 54.0 48.0
Full Circle Welding

9.00 49 46.00
Ø10.30
(Unit mm) Ø12.50
46 Ø10.30

• 4" Sprocket with Hanging Unit 2-Ø10.4 38 10
Item NO. 50621620004
Material SS400 54
Surface Finishing Anti-Rust Oil 21 100

Ø99 Ø81.3 90.5 75.5

15 9
38.4 34.5
R25.9 94

(Unit mm) 49 40 Ø9 4.5
120
