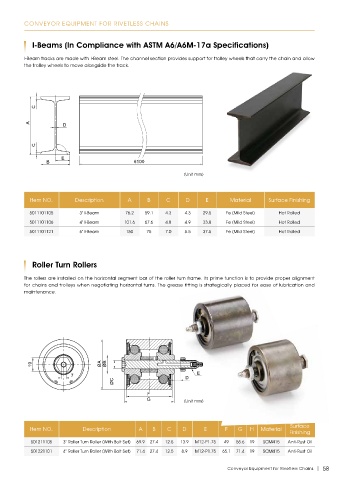

Page 59 - 2020 Product catalog

CONVEYOR EQUIPMENT FOR RIVETLESS CHAINS

I-Beams (In Compliance with ASTM A6/A6M-17a Specifications)

I-Beam tracks are made with I-Beam steel. The channel section provides support for trolley wheels that carry the chain and allow
the trolley wheels to move alongside the track.

C

A D

C

E
B 6100

(Unit mm)

Item NO. Description A B C D E Material Surface Finishing

5011101105 3" I-Beam 76.2 59.1 4.3 4.3 29.5 Fe (Mild Steel) Hot Rolled
5011101106 4" I-Beam 101.6 67.6 4.8 4.9 33.8 Fe (Mild Steel) Hot Rolled
5011101121 6" I-Beam 150 75 7.0 5.5 37.5 Fe (Mild Steel) Hot Rolled

Roller Turn Rollers

The rollers are installed on the horizontal segment bar of the roller turn frame. Its prime function is to provide proper alignment
for chains and trolleys when negotiating horizontal turns. The grease fitting is strategically placed for ease of lubrication and
maintenance.

19 ØA ØB

7 D E
ØC

F
G (Unit mm)

Surface
Item NO. Description A B C D E F G H Material
Finishing
501211105 3" Roller Turn Roller (With Bolt Set) 69.9 27.4 12.5 13.9 M12-P1.75 49 55.6 19 SCM415 Anti-Rust Oil
501221101 4" Roller Turn Roller (With Bolt Set) 71.4 27.4 12.5 8.9 M12-P1.75 65.1 71.4 19 SCM415 Anti-Rust Oil

Conveyor Equipment for Rivetless Chains 58
