P. 60

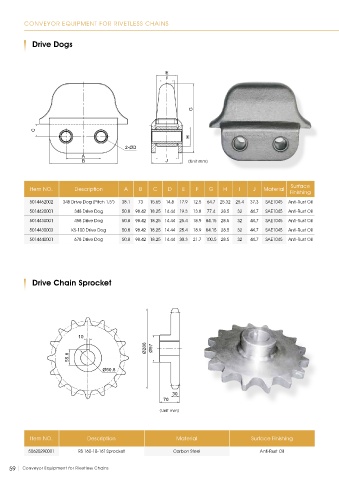

CONVEYOR EQUIPMENT FOR RIVETLESS CHAINS
Drive Dogs
E
F
G
C
H
2-ØD
A I
B J (Unit mm)
Surface
Item NO. Description A B C D E F G H I J Material
Finishing
5014462002 348 Drive Dog (Pitch 1.5") 38.1 73 15.65 14.8 17.9 12.5 64.7 25.32 25.4 37.3 SAE1045 Anti-Rust Oil
5014420001 348 Drive Dog 50.8 98.42 18.25 14.44 19.3 13.8 77.4 28.5 32 44.7 SAE1045 Anti-Rust Oil
5014430001 458 Drive Dog 50.8 98.42 18.25 14.44 25.4 18.9 84.15 28.5 32 44.7 SAE1045 Anti-Rust Oil
5014430003 KS-100 Drive Dog 50.8 98.42 18.25 14.44 25.4 18.9 84.15 28.5 32 44.7 SAE1045 Anti-Rust Oil
5014440001 678 Drive Dog 50.8 98.42 18.25 14.44 30.3 21.7 100.5 28.5 32 44.7 SAE1045 Anti-Rust Oil
Drive Chain Sprocket
10
Ø286 Ø97
55.8
Ø50.8
30
70
(Unit mm)
Item NO. Description Material Surface Finishing
50620290001 RS 160-1B-16T Sprocket Carbon Steel Anti-Rust Oil
59 Conveyor Equipment for Rivetless Chains
