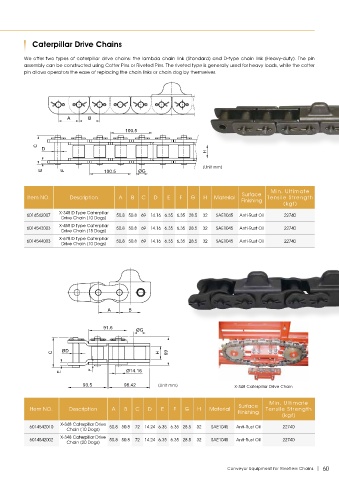

Page 61 - 2020 Product catalog

Caterpillar Drive Chains

We offer two types of caterpillar drive chains: the lambda chain link (Standard) and D-type chain link (Heavy-duty). The pin
assembly can be constructed using Cotter Pins or Riveted Pins. The riveted type is generally used for heavy loads, while the cotter
pin allows operators the ease of replacing the chain links or chain dog by themselves.

A B

100.5

C
D
H
(Unit mm)
E F 100.5 ØG

Min. Ultimate
Surface
Item NO. Description A B C D E F G H Material Tensile Strength
Finishing
(kgf)
X-348 D Type Caterpillar
6014542007 50.8 50.8 69 14.16 6.35 6.35 28.5 32 SAE1045 Anti-Rust Oil 22740
Drive Chain (10 Dogs)
X-458 D Type Caterpillar
6014543003 50.8 50.8 69 14.16 6.35 6.35 28.5 32 SAE1045 Anti-Rust Oil 22740
Drive Chain (15 Dogs)
X-678 D Type Caterpillar
6014544003 50.8 50.8 69 14.16 6.35 6.35 28.5 32 SAE1045 Anti-Rust Oil 22740
Drive Chain (10 Dogs)

A B

91.6 ØG

ØD
C H 69

F Ø14.16
E
93.5 98.42 (Unit mm) X-348 Caterpillar Drive Chain

Min. Ultimate
Surface
Item NO. Description A B C D E F G H Material Tensile Strength
Finishing
(kgf)
X-348 Caterpillar Drive
6014542010 50.8 50.8 72 14.24 6.35 6.35 28.5 32 SAE1045 Anti-Rust Oil 22740
Chain (10 Dogs)
X-348 Caterpillar Drive
6014542002 50.8 50.8 72 14.24 6.35 6.35 28.5 32 SAE1045 Anti-Rust Oil 22740
Chain (20 Dogs)

Conveyor Equipment for Rivetless Chains 60
