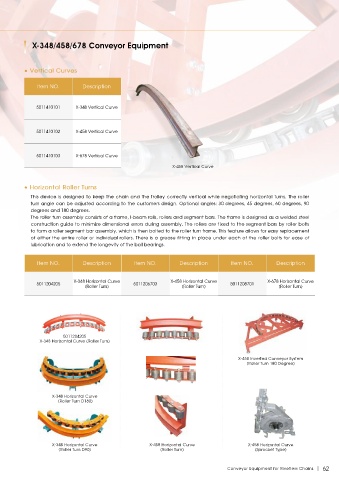

Page 63 - 2020 Product catalog

X-348/458/678 Conveyor Equipment

• Vertical Curves

Item NO. Description

5011410101 X-348 Vertical Curve

5011410102 X-458 Vertical Curve

5011410103 X-678 Vertical Curve
X-458 Vertical Curve

• Horizontal Roller Turns
This device is designed to keep the chain and the trolley correctly vertical while negotiating horizontal turns. The roller
turn angle can be adjusted according to the customers design. Optional angles: 30 degrees, 45 degrees, 60 degrees, 90
degrees and 180 degrees.
The roller turn assembly consists of a frame, I-beam rails, rollers and segment bars. The frame is designed as a welded steel
construction guide to minimize dimensional errors during assembly. The rollers are f ixed to the segment bars by roller bolts
to form a roller segment bar assembly, which is then bolted to the roller turn frame. This feature allows for easy replacement
of either the entire roller or individual rollers. There is a grease fitting in place under each of the roller bolts for ease of
lubrication and to extend the longevity of the ball bearings.

Item NO. Description Item NO. Description Item NO. Description

X-348 Horizontal Curve X-458 Horizontal Curve X-678 Horizontal Curve
5011204205 5011206703 5011208701
(Roller Turn) (Roller Turn) (Roller Turn)

5011204205
X-348 Horizontal Curve (Roller Turn)

X-458 Inverted Conveyor System
(Roller Turn 180 Degree)

X-348 Horizontal Curve
(Roller Turn D180)

X-348 Horizontal Curve X-458 Horizontal Curve X-458 Horizontal Curve
(Roller Turn D90) (Roller Turn) (Sprocket Type)

Conveyor Equipment for Rivetless Chains 62
