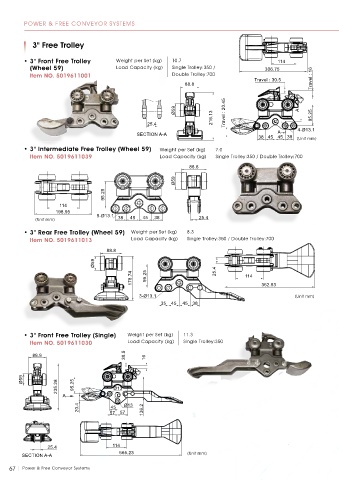

POWER & FREE CONVEYOR SYSTEMS

3" Free Trolley

• 3" Front Free Trolley Weight per Set (kg) 10.7 114
(Wheel 59) Load Capacity (kg) Single Trolley:350 / 306.75
Item NO. 5019611001 Double Trolley:700
Travel : 30.5 Travel : 16
88.8

Ø59 Travel : 20.45 A 95.25

25.4 216.13

SECTION A-A A 4-Ø13.1
38 45 45 38 (Unit mm)
• 3" Intermediate Free Trolley (Wheel 59) Weight per Set (kg) 7.0
Item NO. 5019611039 Load Capacity (kg) Single Trolley:350 / Double Trolley:700
88.8

Ø59
95.25

114
198.95
5-Ø13.1 38 45 45 38 25.4
(Unit mm)
• 3" Rear Free Trolley (Wheel 59) Weight per Set (kg) 8.3
Item NO. 5019611013 Load Capacity (kg) Single Trolley:350 / Double Trolley:700
88.8

Ø59
178.74 95.25 25.4 114 362.93

3-Ø13.1 (Unit mm)
35 45 45 38

• 3" Front Free Trolley (Single) Weight per Set (kg) 11.3
Item NO. 5019611030 Load Capacity (kg) Single Trolley:350

88.8 30.5 16

Ø59
235.28 95.25 Ø13

A
20.4 57 57 Ø13 136.2
45

25.4 114
565.23 (Unit mm)
SECTION A-A
