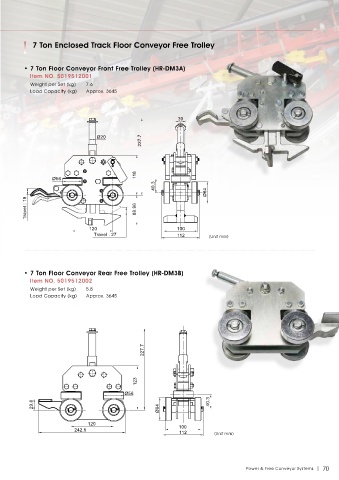

7 Ton Enclosed Track Floor Conveyor Free Trolley
• 7 Ton Floor Conveyor Front Free Trolley (HR-DM3A)
Item NO. 5019512001
Weight per Set (kg) 7.6
Load Capacity (kg) Approx. 3645
30
Ø20
227.7
118
Ø56
40.3
Ø64
Travel : 19 88.96
120 100
Travel : 27 112 (Unit mm)
• 7 Ton Floor Conveyor Rear Free Trolley (HR-DM3B)
Item NO. 5019512002
Weight per Set (kg) 5.8
Load Capacity (kg) Approx. 3645
227.7
123
Ø56
29.8 Ø64 40.3
120
242.5 100
112 (Unit mm)
