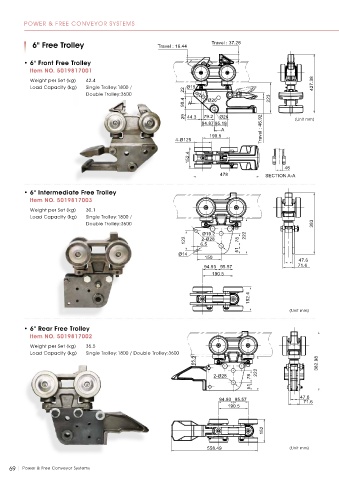

POWER & FREE CONVEYOR SYSTEMS
6" Free Trolley Travel : 16.44 Travel : 37.28
• 6" Front Free Trolley
Item NO. 5019817001
Weight per Set (kg) 42.4 427.38
Load Capacity (kg) Single Trolley:1800 / 22 Ø19
Double Trolley:3600
90.4 A Ø26 223
29 44.3 79.2 Ø26 (Unit mm)
94.87 95.18
A Travel : 46.92
190.5
4-Ø125
152.4
46
478 SECTION A-A
• 6" Intermediate Free Trolley
Item NO. 5019817003
Weight per Set (kg) 30.1
Load Capacity (kg) Single Trolley:1800 /
Double Trolley:3600 383
Ø19.2 222
2-Ø28
122 6.5 78
51
Ø14
150
47.6
94.93 95.57 71.6
190.5
152.4
(Unit mm)
• 6" Rear Free Trolley
Item NO. 5019817002
Weight per Set (kg) 35.5
Load Capacity (kg) Single Trolley:1800 / Double Trolley:3600
65.51 382.98
222
2-Ø28 78
51
94.93 95.57 47.6
71.6
190.5
152
558.49 (Unit mm)
