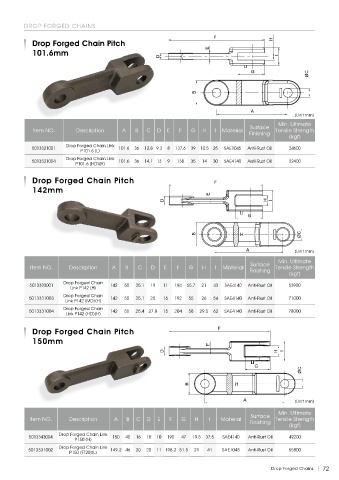

DROP FORGED CHAINS

F
Drop Forged Chain Pitch H
101.6mm E
D I

G
ØC

B

A
(Unit mm)
Min. Ultimate
Surface
Item NO. Description A B C D E F G H I Material Tensile Strength
Finishing
(kgf)
Drop Forged Chain Link
5013321001 101.6 36 12.8 9.3 8 137.6 39 10.5 25 SAE1045 Anti-Rust Oil 24600
P101.6 (L)
Drop Forged Chain Link
5013321004 101.6 36 14.1 13 9 138 35 14 30 SAE4140 Anti-Rust Oil 32400
P101.6 (HD)(H)
Drop Forged Chain Pitch F

142mm
E
D H I

G

B H ØC

A (Unit mm)

Min. Ultimate
Surface
Item NO. Description A B C D E F G H I Material Tensile Strength
Finishing
(kgf)
Drop Forged Chain
5013333001 142 50 25.1 19 11 194 55.7 21 43 SAE4140 Anti-Rust Oil 53900
Link P142 (H)
Drop Forged Chain
5013331003 142 50 25.1 25 16 192 55 26 54 SAE4140 Anti-Rust Oil 71000
Link P142 (MD)(H)
Drop Forged Chain
5013331004 142 50 25.4 27.8 15 204 58 29.5 62 SAE4140 Anti-Rust Oil 78000
Link P142 (HD)(H)
Drop Forged Chain Pitch F
150mm
E
D H I

G
ØC

B H

A (Unit mm)

Min. Ultimate
Surface
Item NO. Description A B C D E F G H I Material Tensile Strength
Finishing
(kgf)
Drop Forged Chain Link
5013343004 150 40 16 18 10 190 47 19.5 37.5 SAE4140 Anti-Rust Oil 49200
P150 (H)
Drop Forged Chain Link
5013331002 149.2 46 20 20 11 198.2 51.5 21 41 SAE1045 Anti-Rust Oil 55800
P150 (FT20)(L)
Drop Forged Chains 72
