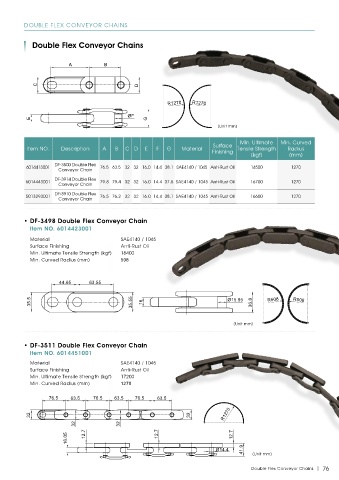

DOUBLE FLEX CONVEYOR CHAINS

Double Flex Conveyor Chains

A B

C D

R1270 R1270

ØF
E G
(Unit mm)

Min. Ultimate Min. Curved
Surface
Item NO. Description A B C D E F G Material Tensile Strength Radius
Finishing
(kgf) (mm)
DF-3500 Double Flex
6014413001 76.5 63.5 32 32 16.0 14.4 38.1 SAE4140 / 1045 Anti-Rust Oil 14500 1270
Conveyor Chain
DF-3914 Double Flex
6014443001 79.8 79.4 32 32 16.0 14.4 37.5 SAE4140 / 1045 Anti-Rust Oil 16700 1270
Conveyor Chain
DF-3910 Double Flex
5013293001 76.5 76.2 32 32 16.0 14.4 38.1 SAE4140 / 1045 Anti-Rust Oil 16600 1270
Conveyor Chain

• DF-3498 Double Flex Conveyor Chain
Item NO. 6014423001

Material SAE4140 / 1045
Surface Finishing Anti-Rust Oil
Min. Ultimate Tensile Strength (kgf) 18400
Min. Curved Radius (mm) 508

44.65 63.55

35.5 35.55 16 Ø15.95 36.8 R508 R508

(Unit mm)

• DF-3511 Double Flex Conveyor Chain
Item NO. 6014451001
Material SAE4140 / 1045
Surface Finishing Anti-Rust Oil
Min. Ultimate Tensile Strength (kgf) 17200
Min. Curved Radius (mm) 1270

76.5 63.5 76.5 63.5 76.5 63.5
R1270
32 32
32 32

16.05 12.7 12.7 12.7

Ø14.4 41.9 (Unit mm)
