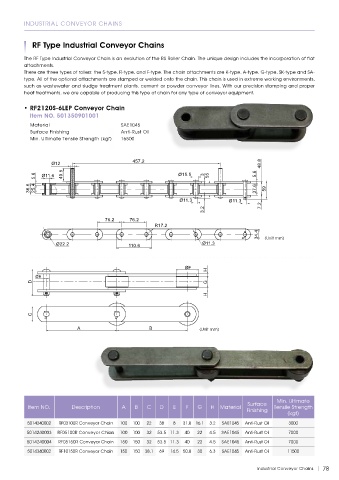

INDUSTRIAL CONVEYOR CHAINS

RF Type Industrial Conveyor Chains

The RF Type Industrial Conveyor Chain is an evolution of the RS Roller Chain. The unique design includes the incorporation of f lat
attachments.
There are three types of rollers: the S-type, R-type, and F-type. The chain attachments are K-type, A-type, G-type, SK-type and SA-
type. All of the optional attachments are stamped or welded onto the chain. This chain is used in extreme working environments,
such as wastewater and sludge treatment plants, cement or powder conveyor lines. With our precision stamping and proper
heat treatments, we are capable of producing this type of chain for any type of conveyor equipment.

• RF2120S-6LEP Conveyor Chain
Item NO. 501350901001
Material SAE1045
Surface Finishing Anti-Rust Oil
Min. Ultimate Tensile Strength (kgf) 16500

Ø12 457.2 48.8

5.6 Ø11.6 40.5 Ø15.5 3 55 5.6
36.6 25.4 37.6 59

Ø11.3 Ø11.3
7.2
3.2

76.2 76.2
R17.2
34.4 (Unit mm)

Ø22.2 110.6 Ø11.3

ØF
H
ØE
D G

H

C

A B (Unit mm)

Min. Ultimate
Surface
Item NO. Description A B C D E F G H Material Tensile Strength
Finishing
(kgf)
5014240002 RF03100R Conveyor Chain 100 100 22 38 8 31.8 16.1 3.2 SAE1045 Anti-Rust Oil 3000
5014240003 RF05100R Conveyor Chian 100 100 32 53.5 11.3 40 22 4.5 SAE1045 Anti-Rust Oil 7000
5014240004 RF05150R Conveyor Chain 150 150 32 53.5 11.3 40 22 4.5 SAE1045 Anti-Rust Oil 7000
5014340002 RF10150R Conveyor Chain 150 150 38.1 69 14.5 50.8 30 6.3 SAE1045 Anti-Rust Oil 11500
