INDUSTRIAL CONVEYOR CHAINS

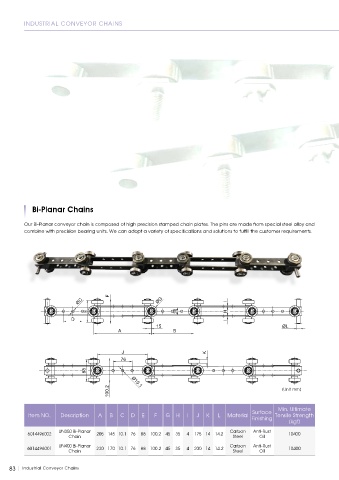

Bi-Planar Chains
Our Bi-Planar conveyor chain is composed of high precision stamped chain plates. The pins are made from special steel alloy and
combine with precision bearing units. We can adopt a variety of specifications and solutions to fulf ill the customer requirements.
F
ØC ØG I
30
E H
D I
15 ØL
A B
J K
76
88 Ø10.1
100.2 (Unit mm)
Min. Ultimate
Surface
Item NO. Description A B C D E F G H I J K L Material Tensile Strength
Finishing
(kgf)
UN350 Bi-Planar Carbon Anti-Rust
6014496002 205 145 10.1 76 88 100.2 45 35 4 175 14 14.2 10400
Chain Steel Oil
UN400 Bi-Planar Carbon Anti-Rust
6014496001 230 170 10.1 76 88 100.2 45 35 4 200 14 14.2 10400
Chain Steel Oil
