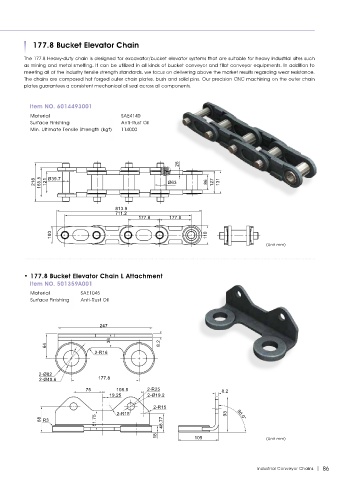

177.8 Bucket Elevator Chain

The 177.8 Heavy-duty chain is designed for excavator/bucket elevator systems that are suitable for heavy industrial sites such
as mining and metal smelting. It can be utilized in all kinds of bucket conveyor and f llat conveyor equipments. In addition to
meeting all of the industry tensile strength standards, we focus on delivering above the market results regarding wear resistance.
The chains are composed hot forged outer chain plates, bush and solid pins. Our precision CNC machining on the outer chain
plates guarantees a consistent mechanical oil seal across all components.

Item NO. 6014493001

Material SAE4140
Surface Finishing Anti-Rust Oil
Min. Ultimate Tensile Strength (kgf) 114000

26

218 165.5 121 Ø39.7 Ø63 86 127 131

813.9
711.2
177.8 177.8

100 110
(Unit mm)

• 177.8 Bucket Elevator Chain L Attachment
Item NO. 501359A001

Material SAE1045
Surface Finishing Anti-Rust Oil

247

36
64 8.2
2-R16

2-Ø82
2-Ø40.6 177.8

75 108.5 2-R25 8.2
19.25 2-Ø19.2

2-R15
2-R15 93 90.0°
51.75 48.77
68 R3

18 105 (Unit mm)
