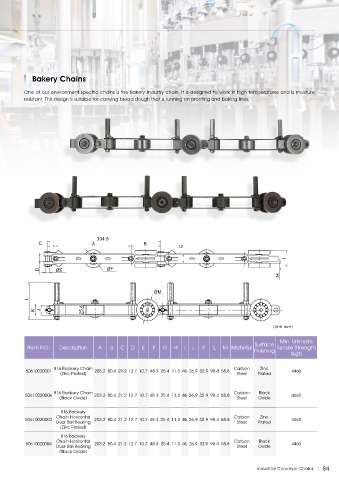

Page 85 - 2020 Product catalog

Bakery Chains

One of our environment specif ic chains is the Bakery Industry chain. It is designed to work in high temperatures and is moisture
resistant. This design is suitable for carrying bread dough that is running on proof ing and baking lines.

304.8
C A B
G
I

D ØE ØF
H

ØM
L
25.4
K J

(Unit mm)

Min. Ultimate
Surface
Item NO. Description A B C D E F G H I J K L M Material Tensile Strength
Finishing
(kgf)
816 Backery Chain Carbon Zinc
50610020001 203.2 80.4 21.2 12.7 10.7 48.3 25.4 11.3 46 26.9 32.9 98.4 58.8 4460
(Zinc Plated) Steel Plated

816 Backery Chain Carbon Black
50610020006 203.2 80.4 21.2 12.7 10.7 48.3 25.4 11.3 46 26.9 32.9 98.4 58.8 4460
(Black Oxide) Steel Oxide
816 Backery
Chain-Horizontal Carbon Zinc
50610020002 203.2 80.4 21.2 12.7 10.7 48.3 25.4 11.3 46 26.9 32.9 98.4 58.8 4460
Dual Ball Bearing Steel Plated
(Zinc Plated)
816 Backery
Chain-Horizontal Carbon Black
50610020004 203.2 80.4 21.2 12.7 10.7 48.3 25.4 11.3 46 26.9 32.9 98.4 58.8 4460
Dual Ball Bearing Steel Oxide
(Black Oxide)

Industrial Conveyor Chains 84
