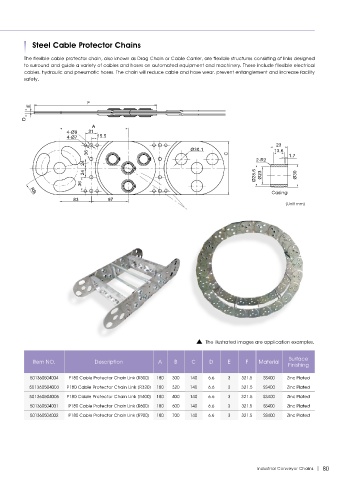

Steel Cable Protector Chains

The f lexible cable protector chain, also known as Drag Chain or Cable Carrier, are f lexible structures consisting of links designed
to surround and guide a variety of cables and hoses on automated equipment and machinery. These include f llexible electrical
cables, hydraulic and pneumatic hoses. The chain will reduce cable and hose wear, prevent entanglement and increase facility
safety.

F
E

D
A
4-Ø9 31
4-Ø7 15.5
23
Ø30.1 13.6
36 C 1.7
2-R2
24
Ø28.6 Ø23 Ø30
24
36
Casing
RB
83 97
(Unit mm)

The illustrated images are application examples.

Surface
Item NO. Description A B C D E F Material
Finishing
501360504004 P180 Cable Protector Chain Link (R300) 180 300 140 6.6 3 321.5 SS400 Zinc Plated
501360504003 P180 Cable Protector Chain Link (R320) 180 320 140 6.6 3 321.5 SS400 Zinc Plated
501360504005 P180 Cable Protector Chain Link (R400) 180 400 140 6.6 3 321.5 SS400 Zinc Plated
501360504001 P180 Cable Protector Chain Link (R600) 180 600 140 6.6 3 321.5 SS400 Zinc Plated
501360504002 P180 Cable Protector Chain Link (R700) 180 700 140 6.6 3 321.5 SS400 Zinc Plated
