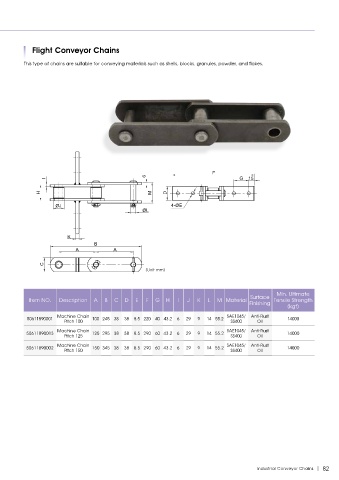

Flight Conveyor Chains
This type of chains are suitable for conveying materials such as shells, blocks, granules, powder, and f lakes.
F
6
I G 15
H M D
ØJ 4-ØE
ØL
K
B
A A
C
(Unit mm)
Min. Ultimate
Surface
Item NO. Description A B C D E F G H I J K L M Material Tensile Strength
Finishing
(kgf)
Machine Chain SAE1045/ Anti-Rust
50611890001 100 245 38 38 8.5 220 40 43.2 6 29 9 14 55.2 14000
Pitch 100 SS400 Oil
Machine Chain SAE1045/ Anti-Rust
50611890013 125 295 38 38 8.5 290 60 43.2 6 29 9 14 55.2 14000
Pitch 125 SS400 Oil
Machine Chain SAE1045/ Anti-Rust
50611890002 150 345 38 38 8.5 290 60 43.2 6 29 9 14 55.2 14000
Pitch 150 SS400 Oil
