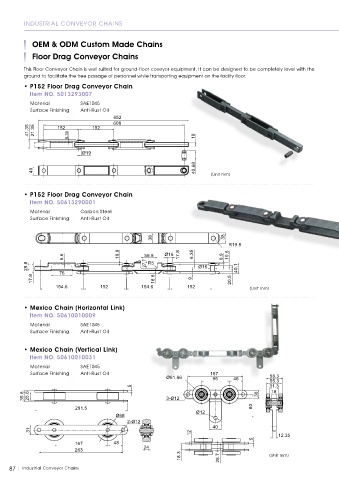

Page 88 - 2020 Product catalog

INDUSTRIAL CONVEYOR CHAINS

OEM & ODM Custom Made Chains
Floor Drag Conveyor Chains

This Floor Conveyor Chain is well suited for ground-f loor coveyor equipment. It can be designed to be completely level with the
ground to facilitate the free passage of personnel while transporting equipment on the facilty f loor.
• P152 Floor Drag Conveyor Chain
Item NO. 5013293007
Material SAE1045
Surface Finishing Anti-Rust Oil
652
608
41.35 21.35 152 6.35 152 19

Ø19

40.68
40 (Unit mm)

• P152 Floor Drag Conveyor Chain
Item NO. 50613290001
Material Carbon Steel
Surface Finishing Anti-Rust Oil

38 38
R19.8

5.6 18.8 59.6 Ø16 17.8 6.35 8.9 10.6
29.8 27.7 R5 Ø16 40.1
76
17.8 18.8 9 20.5
154.6 152 154.6 152 (Unit mm)

• Mexico Chain (Horizontal Link)
Item NO. 50610010009
Material SAE1045
Surface Finishing Anti-Rust Oil

• Mexico Chain (Vertical Link)
Item NO. 50610010031
Material SAE1045
Surface Finishing Anti-Rust Oil 187
Ø61.66 95 46 58.3
55.3
5 31.3
18
35.6 25.6 3-Ø12 30

291.5 80
Ø68 Ø12
2-Ø12
40
31
12 12.35
5
167 48
263 24
18.3 28.7 (Unit mm)
