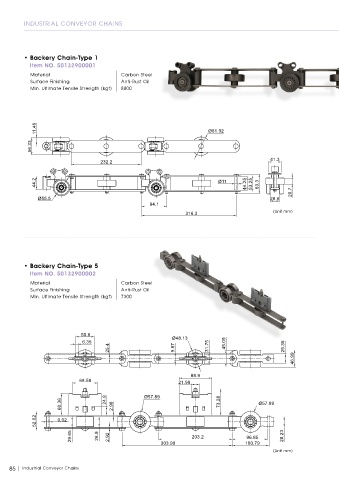

Page 86 - 2020 Product catalog
P. 86
INDUSTRIAL CONVEYOR CHAINS
• Backery Chain-Type 1
Item NO. 50132900001
Material Carbon Steel
Surface Finishing Anti-Rust Oil
Min. Ultimate Tensile Strength (kgf) 8800
11.46 Ø61.92
56.33
41.3
232.2
44.2 Ø11 44.25 53.25 63.3
20.7
Ø55.5 28.6
84.1
316.3 (Unit mm)
• Backery Chain-Type 5
Item NO. 50132900002
Material Carbon Steel
Surface Finishing Anti-Rust Oil
Min. Ultimate Tensile Strength (kgf) 7300
50.8
6.35 Ø48.13 45.09
25.4 9.87 31.75 25.36
46.99
88.9
68.58 21.98
60.36 24.8 2.98 Ø57.89 73.28 Ø57.89
52.02 9.02
29.65 26.9 2.92 203.2 96.85 28.23
303.99 100.79
(Unit mm)
85 Industrial Conveyor Chains
