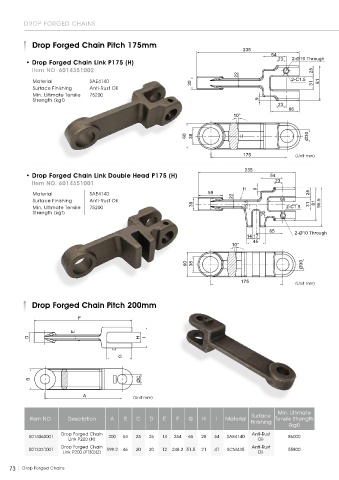

Page 74 - 2020 Product catalog

DROP FORGED CHAINS

Drop Forged Chain Pitch 175mm
235
54
• Drop Forged Chain Link P175 (H) 23 2-Ø10 Through
Item NO. 6014351002 25
22
Material SAE4140 30 2-C1.5 31 81
Surface Finishing Anti-Rust Oil
Min. Ultimate Tensile 75200
Strength (kgf) 9
23
66
10°

60 38 H Ø30

175 (Unit mm)

235
• Drop Forged Chain Link Double Head P175 (H) 54
Item NO. 6014351001 23
H 9
Material SAE4140 59 22 25
Surface Finishing Anti-Rust Oil 66 81 95.5
Min. Ultimate Tensile 75200 30 15.5 2-C1.5 31
Strength (kgf) 16

65 2-Ø10 Through
14 17
45
10°

60 38 Ø30

175 (Unit mm)

Drop Forged Chain Pitch 200mm

F

E
D H I

G

ØC
B

A (Unit mm)

Min. Ultimate
Surface
Item NO. Description A B C D E F G H I Material Tensile Strength
Finishing
(kgf)
Drop Forged Chain Anti-Rust
5014363001 200 54 25 26 14 254 65 28 54 SAE4140 86000
Link P200 (H) Oil”
Drop Forged Chain Anti-Rust
5013331001 199.2 46 20 20 12 248.2 51.5 21 41 SCM435 55800
Link P200 (FT30)(Z) Oil”
73 Drop Forged Chains
