P. 69

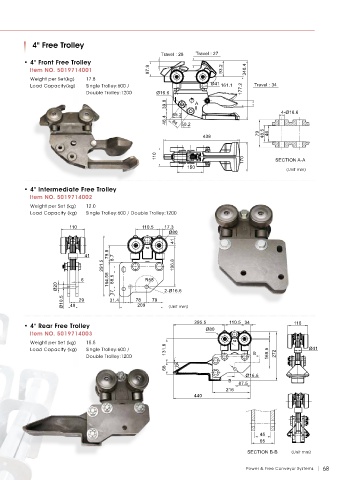

4" Free Trolley
Travel : 28 Travel : 27
• 4" Front Free Trolley
Item NO. 5019714001 87.9 93.2 340.4
Weight per Set(kg) 17.8
Load Capacity(kg) Single Trolley:600 / Ø41 161.1 Travel : 34
Double Trolley:1200 Ø16.6 A 177.2
39.8 A
55.2 4-Ø16.6
46.4 64 50.2
438 79 48.5 46
110 170 SECTION A-A
150
(Unit mm)
• 4" Intermediate Free Trolley
Item NO. 5019714002
Weight per Set (kg) 12.0
Load Capacity (kg) Single Trolley:600 / Double Trolley:1200
110 110.5 17.3
Ø80
41
41 79.8 8.7
291.5 196.8
6 164.55 88.5 R55
Ø20 2-Ø16.6
37
Ø10.5 49 29 31.4 78 79 (Unit mm)
209
295.5 110.5 34 110
• 4" Rear Free Trolley Ø80
Item NO. 5019714003
Weight per Set (kg) 15.5
Load Capacity (kg) Single Trolley:600 / 131.8 B Ø41
Double Trolley:1200 169.5 272
68 30°
Ø16.6
B
87.5
216
440
45
65
SECTION B-B (Unit mm)
Power & Free Conveyor Systems 68
