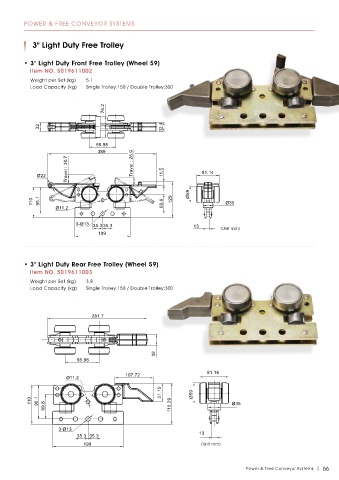

POWER & FREE CONVEYOR SYSTEMS
3" Light Duty Free Trolley
• 3" Light Duty Front Free Trolley (Wheel 59)
Item NO. 5019611002
Weight per Set (kg) 5.1
Load Capacity (kg) Single Trolley:150 / Double Trolley:300
76.2
32 32.4
95.98
389
Travel : 30.7 Travel : 26.9 81.14
Ø22 11.5
Ø59
110 95.1 69.6 129 Ø35
Ø11.2
3-Ø13 35.3 35.3 13
(Unit mm)
199
• 3" Light Duty Rear Free Trolley (Wheel 59)
Item NO. 5019611003
Weight per Set (kg) 3.8
Load Capacity (kg) Single Trolley:150 / Double Trolley:300
281.7
32
95.98
107.72 81.14
Ø11.2
51.15 Ø59
110 95.1 69.6 115.29 Ø35
3-Ø13
35.3 35.3 13
199 (Unit mm)
