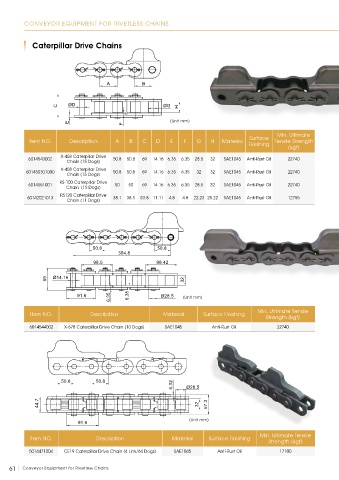

Page 62 - 2020 Product catalog

CONVEYOR EQUIPMENT FOR RIVETLESS CHAINS

Caterpillar Drive Chains

A B

ØD
C ØG H

(Unit mm)
E F
Min. Ultimate
Surface
Item NO. Description A B C D E F G H Material Tensile Strength
Finishing
(kgf)
X-458 Caterpillar Drive
6014543002 50.8 50.8 69 14.16 6.35 6.35 28.5 32 SAE1045 Anti-Rust Oil 22740
Chain (15 Dogs)
X-458 Caterpillar Drive
601450301000 50.8 50.8 69 14.16 6.35 6.35 32 32 SAE1045 Anti-Rust Oil 22740
Chain (15 Dogs)
KS-100 Caterpillar Drive
6014551001 50 50 69 14.16 6.35 6.35 28.5 32 SAE1045 Anti-Rust Oil 22740
Chain (15 Dogs)
RS120 Caterpillar Drive
60142021013 38.1 38.1 53.8 11.11 4.8 4.8 22.23 25.22 SAE1045 Anti-Rust Oil 12755
Chain (11 Dogs)

50.8 50.8
304.8
98.5 98.42

69 Ø14.16 32

91.6 6.35 6.35 Ø28.5 (Unit mm)

Min. Ultimate Tensile
Item NO. Description Material Surface Finishing
Strength (kgf)
6014544002 X-678 Caterpillar Drive Chain (10 Dogs) SAE1045 Anti-Rust Oil 22740

50.8 50.8
6.32 Ø28.5

44.7 32 57.3

(Unit mm)
91.6

Min. Ultimate Tensile
Item NO. Description Material Surface Finishing
Strength (kgf)
5014471004 CE19 Caterpillar Drive Chain (4 Link/64 Dogs) SAE1045 Anti-Rust Oil 17100

61 Conveyor Equipment for Rivetless Chains
