POWER TROLLEYS

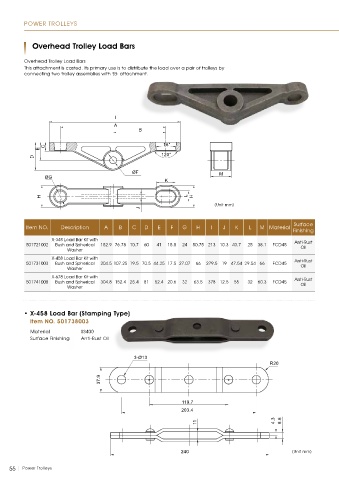

Overhead Trolley Load Bars

Overhead Trolley Load Bars
This attachment is casted. Its primary use is to distribute the load over a pair of trolleys by
connecting two trolley assemblies with “B” attachment.

I
A
B

16°
C
E
120°
D
ØF M
ØG
K

H L H
(Unit mm)
J

Surface
Item NO. Description A B C D E F G H I J K L M Material
Finishing
X-348 Load Bar Kit with
501721002 Bush and Spherical 152.9 76.78 10.7 60 41 15.5 24 50.75 213 10.3 43.7 25 38.1 FCD45 Anti-Rust
Washer Oil
X-458 Load Bar Kit with Anti-Rust
501731003 Bush and Spherical 204.5 107.25 19.5 70.5 44.25 17.5 27.07 66 279.5 19 47.54 29.54 66 FCD45 Oil
Washer
X-678 Load Bar Kit with Anti-Rust
501741008 Bush and Spherical 304.8 152.4 25.4 81 52.4 20.6 32 63.5 378 12.5 55 32 60.3 FCD45 Oil
Washer

• X-458 Load Bar (Stamping Type)
Item NO. 501738003
Material SS400
Surface Finishing Anti-Rust Oil

3-Ø13
R20

37.9

119.7
203.4

11 4.3 8.6

240 (Unit mm)
