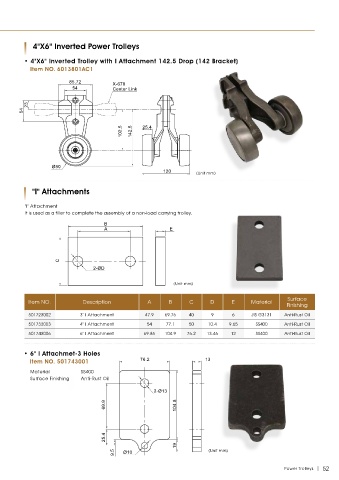

Page 53 - 2020 Product catalog

4"X6" Inverted Power Trolleys

• 4"X6" Inverted Trolley with I Attachment 142.5 Drop (142 Bracket)
Item NO. 6013801AC1

85.72 X-678
54 Center Link

23
54

102.5 142.5 25.4

Ø80
120 (Unit mm)

"I" Attachments

"I" Attachment
It is used as a f iller to complete the assembly of a non-load carrying trolley.
B
A E

C
2-ØD

(Unit mm)

Surface
Item NO. Description A B C D E Material
Finishing
501723002 3" I Attachment 47.9 69.76 40 9 6 JIS G3131 Anti-Rust Oil
501733003 4" I Attachment 54 77.1 50 10.4 9.65 SS400 Anti-Rust Oil
501743006 6" I Attachment 69.85 104.9 76.2 13.46 12 SS400 Anti-Rust Oil

• 6" I Attachmet-3 Holes
Item NO. 501743001 76.2 13

Material SS400
Surface Finishing Anti-Rust Oil

2-Ø13

69.9 104.8

25.4
19
9.5 Ø10 (Unit mm)

Power Trolleys 52
