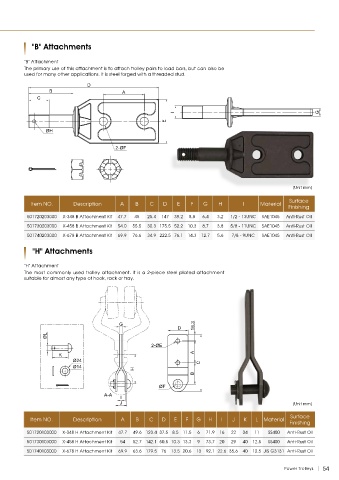

"B" Attachments

"B" Attachment
The primary use of this attachment is to attach trolley pairs to load bars, but can also be
used for many other applications. It is steel forged with a threaded stud.
D
B A
C

I G
E
ØH

2-ØF

(Unit mm)

Surface
Item NO. Description A B C D E F G H I Material
Finishing
501720203000 X-348 B Attachment Kit 47.7 45 25.4 147 39.2 8.8 6.4 3.2 1/2 - 13UNC SAE1045 Anti-Rust Oil
501730203000 X-458 B Attachment Kit 54.0 55.5 30.3 175.5 52.2 10.3 8.7 3.8 5/8 - 11UNC SAE1045 Anti-Rust Oil
501740203000 X-678 B Attachment Kit 69.9 76.6 34.9 222.5 76.1 14.3 12.7 5.6 7/8 - 9UNC SAE1045 Anti-Rust Oil

"H" Attachments

"H" Attachment
The most commonly used trolley attachment. It is a 2-piece steel plated attachment
suitable for almost any type of hook, rack or tray.

G
D 16.3
ØL
2-ØE
K A
Ø24 C
Ø14
H
B
ØF
A-A
I
J (Unit mm)

Surface
Item NO. Description A B C D E F G H I J K L Material
Finishing
501720103000 X-348 H Attachment Kit 47.7 49.6 123.4 37.5 8.5 11.5 6 71.9 16 22 34 11 SS400 Anti-Rust Oil
501730103000 X-458 H Attachment Kit 54 52.7 142.1 50.5 10.3 13.3 9 73.7 20 29 40 12.5 SS400 Anti-Rust Oil
501740103000 X-678 H Attachment Kit 69.9 63.6 179.5 76 13.5 20.6 13 92.1 22.6 35.6 40 12.5 JIS G3131 Anti-Rust Oil

Power Trolleys 54
