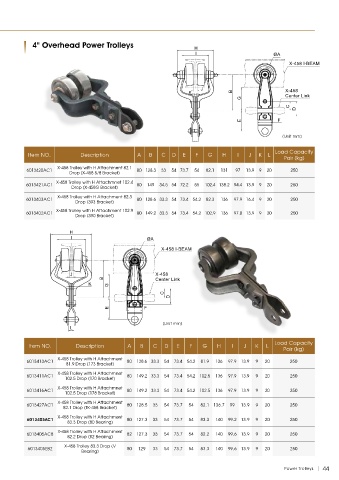

4" Overhead Power Trolleys H
I ØA
X-458 I-BEAM
0 2 5 - 25 YUH - CHE RN
8

J
K B X-458
G Center Link
C
D
E F
L
(Unit mm)

Load Capacity
Item NO. Description A B C D E F G H I J K L
Pair (kg)
X-458 Trolley with H Attachment 82.1
6013420AC1 80 128.3 33 54 73.7 54 82.1 131 97 13.9 9 20 250
Drop (X-458 5/8 Bracket)
X-458 Trolley with H Attachmnet 102.4
6013421AC1 80 149 34.5 54 72.2 55 102.4 138.2 94.4 13.9 9 20 250
Drop (X-458G Bracket)
X-458 Trolley with H Attachment 82.3
6013403AC1 80 128.6 33.3 54 73.4 54.2 82.3 136 97.9 16.4 9 20 250
Drop (393 Bracket)
X-458 Trolley with H Attachment 102.9
6013402AC1 80 149.2 33.3 54 73.4 54.2 102.9 136 97.8 13.9 9 20 250
Drop (390 Bracket)
H
I ØA

X-458 I-BEAM
0 2 5 - 25 YUH - CHE RN
8

J X-458
B Center Link
K G
C
D
E F

(Unit mm)
L

Load Capacity
Item NO. Description A B C D E F G H I J K L
Pair (kg)
X-458 Trolley with H Attachment
6013413AC1 80 128.6 33.3 54 73.4 54.2 81.9 136 97.9 13.9 9 20 250
81.9 Drop (173 Bracket)
X-458 Trolley with H Attachmnet
6013411AC1 80 149.2 33.3 54 73.4 54.2 102.5 136 97.9 13.9 9 20 250
102.5 Drop (170 Bracket)
X-458 Trolley with H Attachmnet
6013416AC1 80 149.2 33.3 54 73.4 54.2 102.5 136 97.9 13.9 9 20 250
102.5 Drop (178 Bracket)
X-458 Trolley with H Attachment
6013427AC1 80 128.5 33 54 73.7 54 82.1 136.7 99 13.9 9 20 250
82.1 Drop (TK-458 Bracket)
X-458 Trolley with H Attachment
6013405AC1 80 127.3 33 54 73.7 54 83.3 140 99.2 13.9 9 20 250
83.3 Drop (80 Bearing)
X-458 Trolley with H Attachment
6013405AC8 82 127.3 33 54 73.7 54 82.2 140 99.6 13.9 9 20 250
82.2 Drop (82 Beairng)
X-458 Trolley 83.3 Drop (V
6013405EB2 80 129 33 54 73.7 54 83.3 140 99.6 13.9 9 20 250
Bearing)
