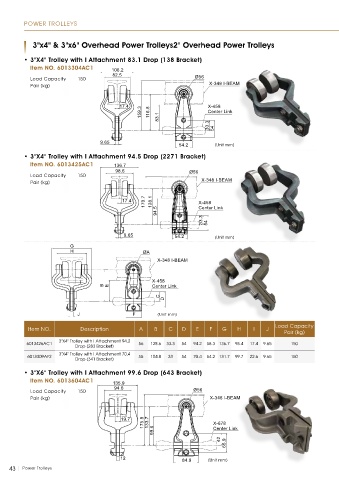

Page 44 - 2020 Product catalog

POWER TROLLEYS

3"x4" & 3"x6" Overhead Power Trolleys2" Overhead Power Trolleys

• 3"X4" Trolley with I Attachment 83.1 Drop (138 Bracket)
Item NO. 6013304AC1 106.2
82.5 Ø56
Load Capacity 150
Pair (kg) X-348 I-BEAM

17.4 X-458
159.3 116.8 83.1 Center Link
33.3 54

9.65
54.2 (Unit mm)
• 3"X4" Trolley with I Attachment 94.5 Drop (2271 Bracket)
Item NO. 6013425AC1 136.7
98.6 Ø56
Load Capacity 150
Pair (kg) X-348 I-BEAM

170.7 128.1 X-458
17.4
94.5 Center Link
33.3 54

9.65 54.2 (Unit mm)
G
H ØA
X-348 I-BEAM

I X-458
B E Center Link
C
D

J F (Unit mm)

Load Capacity
Item NO. Description A B C D E F G H I J
Pair (kg)
3"X4" Trolley with I Attachment 94.2
6013426AC1 56 128.6 33.3 54 94.2 58.3 136.7 95.4 17.4 9.65 150
Drop (283 Bracket)
3"X4" Trolley with I Attachment 70.4
6013309AF2 55 104.8 33 54 70.4 54.2 131.7 99.7 22.6 9.65 150
Drop (341 Bracket)
• 3"X6" Trolley with I Attachment 99.6 Drop (643 Bracket)
Item NO. 6013604AC1 135.9
94.6
Load Capacity 150 Ø56
Pair (kg) X-348 I-BEAM

19.7
175.8 133.7 X-678
99.6 Center Link

42
65.9

12 84.9 (Unit mm)
43 Power Trolleys
