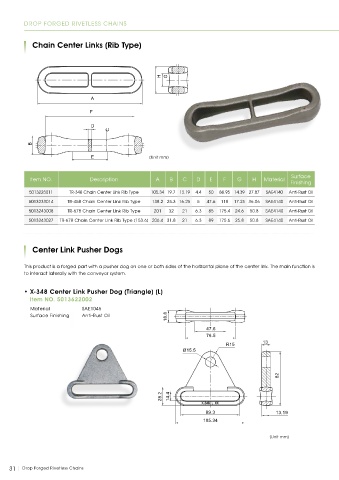

DROP FORGED RIVETLESS CHAINS

Chain Center Links (Rib Type)

H G

A

F

D
C

B

E (Unit mm)

Surface
Item NO. Description A B C D E F G H Material
Finishing
5013223011 TR-348 Chain Center Link Rib Type 105.34 19.7 13.19 4.4 50 88.95 14.39 27.87 SAE4140 Anti-Rust Oil
5013233014 TR-458 Chain Center Link Rib Type 138.2 25.3 16.25 5 47.6 118 17.25 36.06 SAE4140 Anti-Rust Oil
5013243008 TR-678 Chain Center Link Rib Type 201 32 21 6.3 85 175.4 24.6 50.8 SAE4140 Anti-Rust Oil
5013243027 TR-678 Chain Center Link Rib Type (153.6) 206.4 31.8 21 6.3 89 175.6 25.8 50.8 SAE4140 Anti-Rust Oil

Center Link Pusher Dogs

This product is a forged part with a pusher dog on one or both sides of the horizontal plane of the center link. The main function is
to interact laterally with the conveyor system.

• X-348 Center Link Pusher Dog (Triangle) (L)
Item NO. 5013622002
Material SAE1045
Surface Finishing Anti-Rust Oil 18.8

47.6
76.5
R15 13
Ø15.5

82

28.2 14.4

89.3 13.19
105.34

(Unit mm)
