DROP FORGED RIVETLESS CHAINS

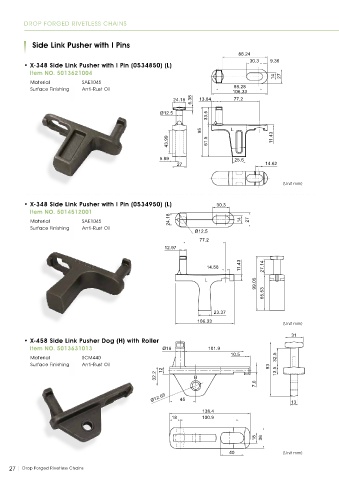

Side Link Pusher with I Pins
86.24
30.3 9.36
• X-348 Side Link Pusher with I Pin (0534850) (L)
Item NO. 5013621004
14 27
Material SAE1045
89.28
Surface Finishing Anti-Rust Oil 106.33
24.18 6.38 13.84 77.2
Ø12.5
33.5
95 L
43.99 61.5 11.43
5.89 25.6
27 14.62
(Unit mm)
• X-348 Side Link Pusher with I Pin (0534950) (L) 30.3
Item NO. 5014512001
Material SAE1045 24.18 14 27
Surface Finishing Anti-Rust Oil
Ø12.5
77.2
12.97
11.43
14.56 27.14
L
99.05
65.53
23.37
106.33
(Unit mm)
31
• X-458 Side Link Pusher Dog (H) with Roller
Item NO. 5013631013 Ø16 101.9
10.5
Material SCM440 32.5
Surface Finishing Anti-Rust Oil 93
12 13.5
32.2 H
7.6
Ø12.65 45 13
138.4
18 100.9
18 36
40 (Unit mm)
