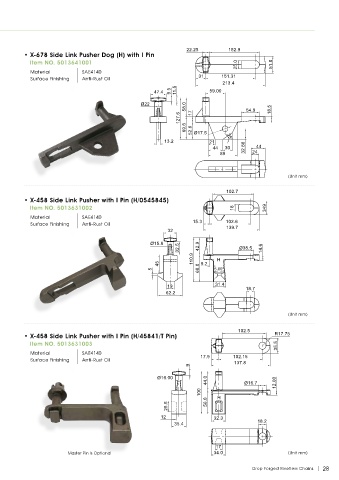

Page 29 - 2020 Product catalog
P. 29
22.25 152.9
• X-678 Side Link Pusher Dog (H) with I Pin
Item NO. 5013641001 25.0 51.0
Material SAE4140
Surface Finishing Anti-Rust Oil 31 151.31
213.4
47.4 9.5 11.5 59.00
Ø22
58.0 54.9 18.5
127.6 17
69.6 52.6 Ø17.5
13.2 21 35°
44 30 32.60 44
89 24
(Unit mm)
102.7
• X-458 Side Link Pusher with I Pin (H/0545845)
Item NO. 5013631002 18 349
Material SAE4140
Surface Finishing Anti-Rust Oil 15.3 102.6
139.7
32
Ø15.8
32.5 42.9 Ø38.5 14.6
110.9 H
45 9.2
5 68.0 5.00°
19 31.4 18.7
62.2
(Unit mm)
102.5
• X-458 Side Link Pusher with I Pin (H/45841/T Pin) R17.75
Item NO. 5013631003 35.5
Material SAE4140 17.9 102.15
Surface Finishing Anti-Rust Oil 137.8
9
Ø16.00
44.0 Ø16.7 12.00
100 H
25.5 56.0
12 32.3
35.4 18.2
17
Master Pin Is Optional 34.0 (Unit mm)
Drop Forged Rivetless Chains 28
