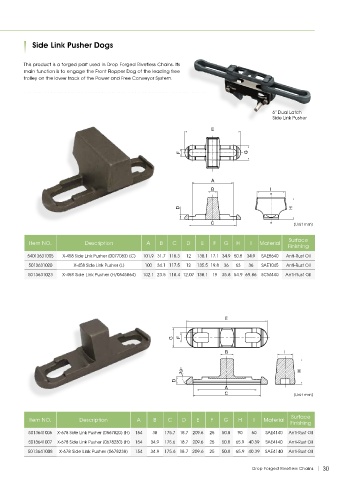

Side Link Pusher Dogs

This product is a forged part used in Drop Forged Rivetless Chains. Its
main function is to engage the Front Flopper Dog of the leading free
trolley on the lower track of the Power and Free Conveyor System.

6" Dual Latch
Side Link Pusher

E

F G

A
B I

D H

C (Unit mm)

Surface
Item NO. Description A B C D E F G H I Material
Finishing
54013631005 X-458 Side Link Pusher (0077083) (C) 101.9 31.7 118.3 12 138.1 17.1 34.9 50.8 34.9 SAE8640 Anti-Rust Oil
5013631020 X-458 Side Link Pusher (L) 100 34.1 117.5 12 135.5 19.8 36 63 36 SAE1045 Anti-Rust Oil
5013631023 X-458 Side Link Pusher (H/0545864) 102.1 23.5 118.4 12.07 138.1 19 35.8 54.9 69.86 SCM440 Anti-Rust Oil

E

G F
B I

39° H

D
A
C (Unit mm)

Surface
Item NO. Description A B C D E F G H I Material
Finishing
5013641006 X-678 Side Link Pusher (0567820) (H) 154 38 175.7 18.7 209.6 25 50.8 90 60 SAE4140 Anti-Rust Oil
5013641007 X-678 Side Link Pusher (0678230) (H) 154 34.9 175.6 18.7 209.6 25 50.8 65.9 40.39 SAE4140 Anti-Rust Oil
5013641008 X-678 Side Link Pusher (0678238) 154 34.9 175.6 18.7 209.6 25 50.8 65.9 40.39 SAE4140 Anti-Rust Oil

Drop Forged Rivetless Chains 30
