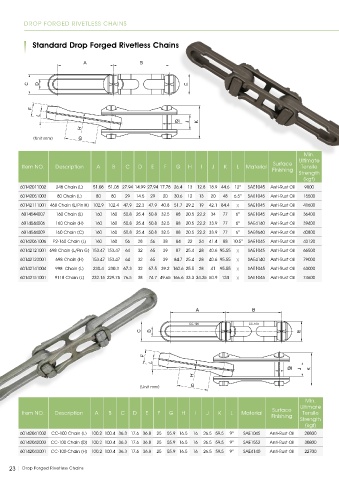

Page 24 - 2020 Product catalog
P. 24
DROP FORGED RIVETLESS CHAINS
Standard Drop Forged Rivetless Chains
A B
C D E
F
L
ØI J K
H
(Unit mm) G
Min.
Ultimate
Surface
Item NO. Description A B C D E F G H I J K L Material Tensile
Finishing
Strength
(kgf)
60142011002 248 Chain (L) 51.08 51.08 27.94 14.99 27.94 17.78 26.4 13 12.8 18.9 44.6 12 O SAE1045 Anti-Rust Oil 9800
60142051003 80 Chain (L) 80 80 29 14.5 29 20 30.6 12 13 20 48 6.5 O SAE1045 Anti-Rust Oil 15500
60142111001 468 Chain (L/Pin H) 102.9 102.4 47.9 22.3 47.9 40.8 51.7 29.2 19 42.1 84.4 x SAE1045 Anti-Rust Oil 41600
6014544007 160 Chain (L) 160 160 50.8 25.4 50.8 32.5 88 20.5 22.2 34 77 6 O SAE1045 Anti-Rust Oil 36400
6014544006 160 Chain (H) 160 160 50.8 25.4 50.8 32.5 88 20.5 22.2 33.9 77 6 O SAE4140 Anti-Rust Oil 39400
6014544009 160 Chain (C) 160 160 50.8 25.4 50.8 32.5 88 20.5 22.2 33.9 77 6 O SAE8640 Anti-Rust Oil 40800
60142061006 P2-160 Chain (L) 160 160 56 28 56 38 84 22 24 41.4 88 10.5 O SAE1045 Anti-Rust Oil 43120
60142121001 698 Chain (L/Pin G) 153.47 153.47 64 32 65 39 87 25.4 28 40.6 95.55 x SAE1045 Anti-Rust Oil 66500
60142123001 698 Chain (H) 153.47 153.47 64 32 65 39 84.7 25.4 28 40.6 95.55 x SAE4140 Anti-Rust Oil 79000
60142141004 998 Chain (L) 230.4 230.3 67.3 32 67.5 39.2 160.6 25.5 28 41 95.55 x SAE1045 Anti-Rust Oil 63000
60142151001 9118 Chain (L) 232.15 229.75 76.5 38 74.7 49.65 166.6 33.3 34.25 50.9 124 x SAE1045 Anti-Rust Oil 74600
A B
CC-100 CC-100
C D E
F
L
ØI J K
H
(Unit mm) G
Min.
Ultimate
Surface
Item NO. Description A B C D E F G H I J K L Material Tensile
Finishing
Strength
(kgf)
60142041002 CC-100 Chain (L) 100.2 100.4 36.3 17.6 36.8 25 55.9 16.5 16 26.5 59.5 9 O SAE1045 Anti-Rust Oil 20800
60142042003 CC-100 Chain (D) 100.2 100.4 36.3 17.6 36.8 25 55.9 16.5 16 26.5 59.5 9 O SAE1552 Anti-Rust Oil 30800
60142043001 CC-100 Chain (H) 100.2 100.4 36.3 17.6 36.8 25 55.9 16.5 16 26.5 59.5 9 O SAE4140 Anti-Rust Oil 22700
