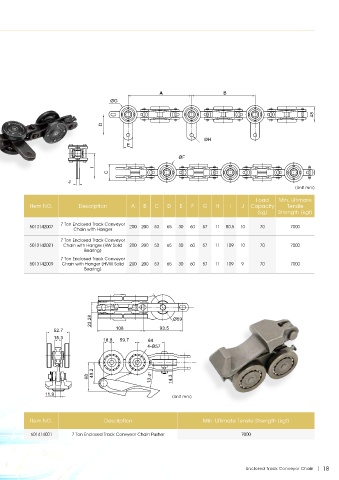

Page 19 - 2020 Product catalog

A A B
ØG

48
D

ØH
E

ØF
I
C
J
(Unit mm)

Load Min. Ultimate
Item NO. Description A B C D E F G H I J Capacity Tensile
(kg) Strength (kgf)
7 Ton Enclosed Track Conveyor
5013142007 200 200 53 65 30 60 57 11 80.5 10 70 7000
Chain with Hanger
7 Ton Enclosed Track Conveyor
5013142021 Chain with Hanger (HW Solid 200 200 53 65 30 60 57 11 109 10 70 7000
Bearing)
7 Ton Enclosed Track Conveyor
5013142009 Chain with Hanger (HVW Solid 200 200 53 65 30 60 57 11 109 9 70 7000
Bearing)

23.28 Ø59

52.7 108 93.5
15.3 18.8 59.7 64
4-Ø57

49.2
68 13.4° 14.3

11.9
(Unit mm)

Item NO. Description Min. Ultimate Tensile Strength (kgf)

601414001 7 Ton Enclosed Track Convyeor Chain Pusher 7000

Enclosed Track Conveyor Chain 18
