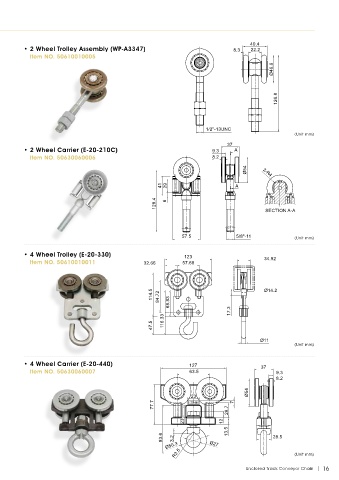

Page 17 - 2020 Product catalog
P. 17
40.4
• 2 Wheel Trolley Assembly (WP-A3347) 8.3 22.2
Item NO. 50610010005
Ø46.6
126.8
1/2"-13UNC
(Unit mm)
37
• 2 Wheel Carrier (E-20-210C) 9.3 A
Item NO. 50630060006 8.2
Ø54 2-R4
41 29 A
128.4 6 SECTION A-A
57.5 5/8"-11 (Unit mm)
• 4 Wheel Trolley (E-20-330) 123
Item NO. 50610010011 32.66 57.68 34.92
114.5 84.72 68.83 Ø14.2
17.3
47.5 116.33
Ø11
(Unit mm)
• 4 Wheel Carrier (E-20-440) 127 37
Item NO. 50630060007 63.5 9.3
8.2
Ø54
23
77.7 7
28.7
23 12
13.5
93.6 3.2 28.5
Ø50.3 Ø27
R3.5 (Unit mm)
Enclosed Track Conveyor Chain 16
