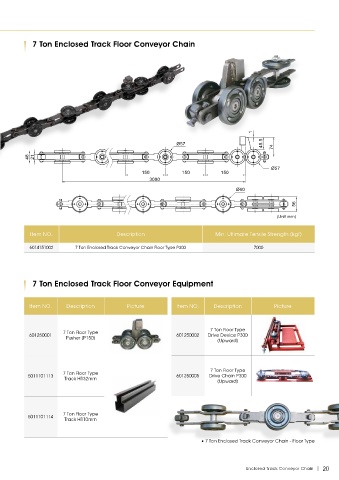

7 Ton Enclosed Track Floor Conveyor Chain

1
Ø57 45.5 74

48 21
Ø57
150 150 150
3000
Ø60

56

(Unit mm)

Item NO. Description Min. Ultimate Tensile Strength (kgf)

6014151002 7 Ton Enclosed Track Conveyor Chain Floor Type P300 7000

7 Ton Enclosed Track Floor Conveyor Equipment

Item NO. Description Picture Item NO. Description Picture

7 Ton Floor Type
7 Ton Floor Type
601250001 601250002 Drive Device P300
Pusher (P150)
(Upward)

7 Ton Floor Type
7 Ton Floor Type
5011101113 601250005 Drive Chain P300
Track H132mm (Upward)

5011101114 7 Ton Floor Type
Track H110mm

• 7 Ton Enclosed Track Conveyor Chain - Floor Type

Enclosed Track Conveyor Chain 20
