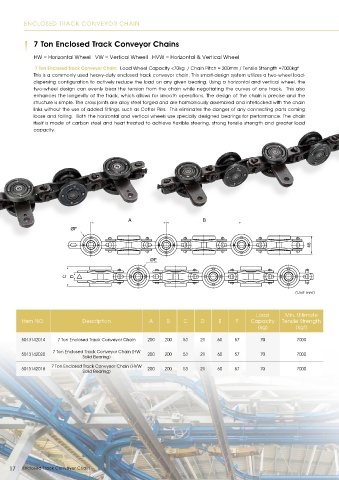

Page 18 - 2020 Product catalog

ENCLOSED TRACK CONVEYOR CHAIN

7 Ton Enclosed Track Conveyor Chains

HW = Horizontal Wheel VW = Vertical Wheell HVW = Horizontal & Vertical Wheel
7 Ton Enclosed Track Conveyor Chain: Load Wheel Capacity <70kg / Chain Pitch = 200mm / Tensile Strength =7000kgf
This is a commonly used heavy-duty enclosed track conveyor chain. This smart-design system utilizes a two-wheel load-
dispersing conf iguration to actively reduce the load on any given bearing. Using a horizontal and vertical wheel, the
two-wheel design can evenly bear the tension from the chain while negotiating the curves of any track. This also
enhances the longevity of the track, which allows for smooth operations. The design of the chain is precise and the
structure is simple. The cross joints are alloy steel forged and are harmoniously assembled and interlocked with the chain
links without the use of added f ittings, such as Cotter Pins. This eliminates the danger of any connecting parts coming
loose and falling. Both the horizontal and vertical wheels use specially designed bearings for performance. The chain
itself is made of carbon steel and heat treated to achieve flexible steering, strong tensile strength and greater load
capacity.

A B
ØF

48

ØE

C D

(Unit mm)

Load Min. Ultimate
Item NO. Description A B C D E F Capacity Tensile Strength
(kg) (kgf)

5013142014 7 Ton Enclosed Track Conveyor Chain 200 200 53 21 60 57 70 7000
7 Ton Enclosed Track Conveyor Chain (HW
5013142020 200 200 53 21 60 57 70 7000
Solid Bearing)
7 Ton Enclosed Track Convyeor Chain (HVW
5013142018 200 200 53 21 60 57 70 7000
Solid Bearing)

17 Enclosed Track Conveyor Chain
