ENCLOSED TRACK CONVEYOR CHAIN

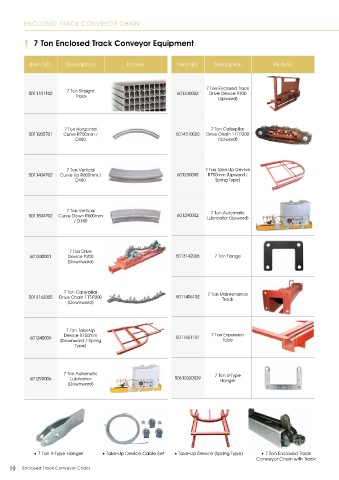

7 Ton Enclosed Track Conveyor Equipment

Item NO. Description Picture Item NO. Description Picture

7 Ton Enclosed Track
7 Ton Straight
5011101102 601230002 Drive Device P200
Track
(Upward)

7 Ton Horizontal 7 Ton Caterpillar
5011205701 Curve R700mm / 5014310002 Drive Chain 11T P200
D180 (Upward)

7 Ton Vertical 7 Ton Take-Up Device
5011404702 Curve Up R600mm / 601230005 R750mm (Upward /
D180 Spring Type)

7 Ton Vertical 7 Ton Automatic
5011504702 Curve Down R600mm 601290002 Lubricator (Upward)
/ D180

7 Ton Drive
601240001 Device P200 5013142006 7 Ton Flange
(Downward)

7 Ton Caterpillar 7 Ton Maintenance
5013142005 Drive Chain 11T P200 5011406102 Track
(Downward)

7 Ton Take-Up
Device R750mm 7 Ton Expansion
601240009 5011601101
(Downward / Spring Tube
Type)

7 Ton Automatic 7 Ton U-Type
601290006 Lubricator 50610320029 Hanger
(Downward)

• 7 Ton Y-Type Hanger • Take-Up Device Cable Set • Take-Up Device (Spring Type) • 7 Ton Enclosed Track
Conveyor Chain with Track
19 Enclosed Track Conveyor Chain
