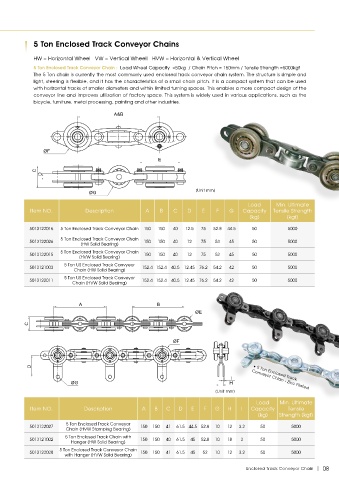

5 Ton Enclosed Track Conveyor Chains

HW = Horizontal Wheel VW = Vertical Wheell HVW = Horizontal & Vertical Wheel
5 Ton Enclosed Track Conveyor Chain : Load Wheel Capacity <50kg / Chain Pitch = 150mm / Tensile Strength =5000kgf
The 5 Ton chain is currently the most commonly used enclosed track conveyor chain system. The structure is simple and
light, steering is f lexible, and it has the characteristics of a small chain pitch. It is a compact system that can be used
with horizontal tracks of smaller diameters and within limited turning spaces. This enables a more compact design of the
conveyor line and improves utilization of factory space. This system is widely used in various applications, such as the
bicycle, furniture, metal processing, painting and other industries.
A&B

ØF
E

C
D

ØG (Unit mm)
Load Min. Ultimate
Item NO. Description A B C D E F G Capacity Tensile Strength
(kg) (kgf)

5013122016 5 Ton Enclosed Track Conveyor Chain 150 150 40 12.5 75 52.8 44.5 50 5000
5 Ton Enclosed Track Conveyor Chain
5013122026 150 150 40 12 75 53 45 50 5000
(HW Solid Bearing)
5 Ton Enclosed Track Conveyor Chain
5013122015 150 150 40 12 75 52 45 50 5000
(HVW Solid Bearing)
5 Ton US Enclosed Track Convyeor
5013121003 152.4 152.4 40.5 12.45 76.2 54.2 42 50 5000
Chain (HW Solid Bearing)
5 Ton US Enclosed Track Conveyor
5013122011 152.4 152.4 40.5 12.45 76.2 54.2 42 50 5000
Chain (HVW Solid Beairng)

A B
ØE

C

ØF

D
I Conveyor Chian - Zinc Plated
• 5 Ton Enclosed Track
ØG H
(Unit mm)

Load Min. Ultimate
Item NO. Description A B C D E F G H I Capacity Tensile
(kg) Strength (kgf)
5 Ton Enclosed Track Conveyor
5013122027 150 150 41 61.5 44.5 52.8 10 12 3.2 50 5000
Chain (HVW Stamping Bearing)
5 Ton Enclosed Track Chain with
5013121002 150 150 40 61.5 45 52.8 10 18 3 50 5000
Hanger (HW Solid Bearing)
5 Ton Enclosed Track Conveyor Chain
5013122028 150 150 41 61.5 45 52 10 12 3.2 50 5000
with Hanger (HVW Solid Bearing)
Enclosed Track Conveyor Chain 08
