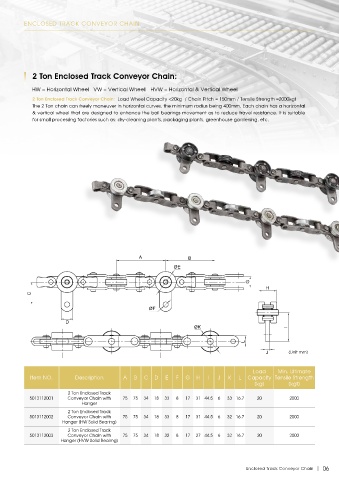

ENCLOSED TRACK CONVEYOR CHAIN
2 Ton Enclosed Track Conveyor Chain:
HW = Horizontal Wheel VW = Vertical Wheell HVW = Horizontal & Vertical Wheel
2 Ton Enclosed Track Conveyor Chain: Load Wheel Capacity <20kg / Chain Pitch = 150mm / Tensile Strength =2000kgf
The 2 Ton chain can freely maneuver in horizontal curves, the minimum radius being 400mm. Each chain has a horizontal
& vertical wheel that are designed to enhance the ball bearings movement as to reduce travel resistance. It is suitable
for small processing factories such as: dry-cleaning plants, packaging plants, greenhouse gardening, etc.
A B
ØE
G
H
C
ØF
D
ØK I
L
J (Unit mm)
Load Min. Ultimate
Item NO. Description A B C D E F G H I J K L Capacity Tensile Strength
(kg) (kgf)
2 Ton Enclosed Track
5013112001 Conveyor Chain with 75 75 34 18 33 8 17 31 44.5 6 33 16.7 20 2000
Hanger
2 Ton Enclosed Track
5013112002 Conveyor Chain with 75 75 34 18 33 8 17 31 44.5 6 32 16.7 20 2000
Hanger (HW Solid Bearing)
2 Ton Enclosed Track
5013112003 Conveyor Chain with 75 75 34 18 32 8 17 27 44.5 6 32 16.7 20 2000
Hanger (HVW Solid Beairng)
