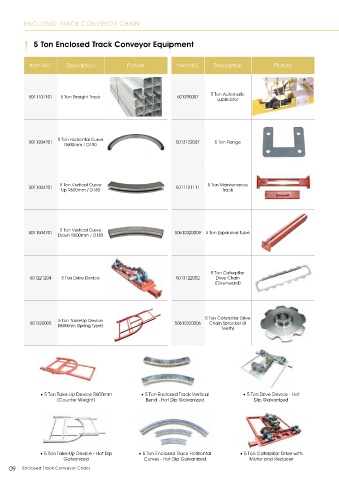

ENCLOSED TRACK CONVEYOR CHAIN

5 Ton Enclosed Track Conveyor Equipment

Item NO. Description Picture Item NO. Description Picture

5 Ton Automatic
5011101101 5 Ton Straight Track 601290007
Lubricator

5 Ton Horizontal Curve
5011204701 5013122007 5 Ton Flange
R600mm / D180

5 Ton Vertical Curve 5 Ton Maintenance
5011404701 5011101111
Up R600mm / D180 Track

5 Ton Vertical Curve
5011504701 50610320009 5 Ton Expansion Tube
Down R600mm / D180

5 Ton Caterpillar
601221204 5 Ton Drive Device 5013122002 Drive Chain
(Downward)

5 Ton Caterpillar Drive
5 Ton Take-Up Device
601220005 50610320006 Chain Sprocket (8
R600mm (Spring Type)
Teeth)

• 5 Ton Take-Up Device R600mm • 5 Ton Enclosed Track Vertical • 5 Ton Drive Device - Hot
(Counter Weight) Bend - Hot Dip Galvanized Dip Galvanized

• 5 Ton Take-Up Device - Hot Dip • 5 Ton Enclosed Track Horizontal • 5 Ton Caterpillar Drive with
Galvanized Curves - Hot Dip Galvanized Motor and Reducer
09 Enclosed Track Conveyor Chain
